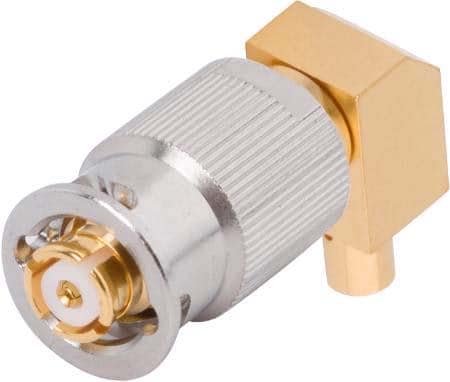

Amphenol SV Microwave 1222-60008 QuarterBack Connectors Coaxial Connectors QB SMP F Conn R/A for .085 Cable

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMP

Body Style: Right Angle

Cable Type: 0.085 in. Flexible Coax

Body Finish: Gold

Orientation: Right Angle

REACH - SVHC: Details

Body Material: Beryllium Copper

Mating Cycles: 100 Cycles, 500 Cycles, 1000 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 40 GHz

Minimum Frequency: DC

Termination Style: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
