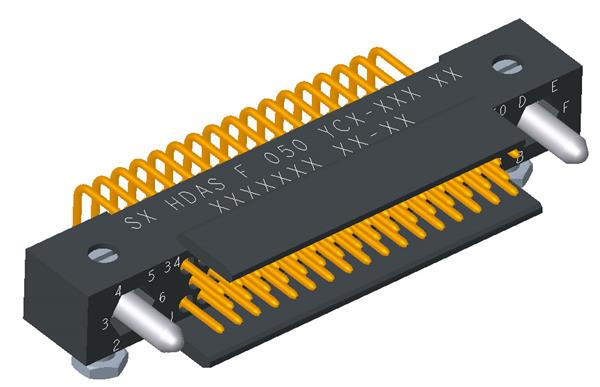

Amphenol Socapex HDASF050YC-000 Connectors 3R MALE PLUG R/A PC TAIL STND LEN
ModelHDASF050YC-000
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.905 mm
MIL Type: MIL-DTL-55302G
Unit Weight: 41.862 g
Contact Gender: Pin (Male)
Current Rating: 4.5 A
Mounting Angle: Right Angle
Mounting Style: PCB Mount
Number of Rows: 3 Row
Voltage Rating: 750 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Number of Positions: 50 Position
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 65 C
