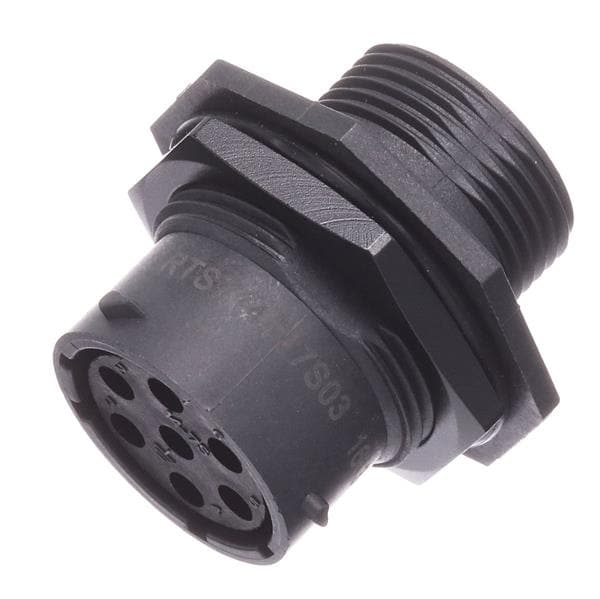

Amphenol SINE Systems RTS714N7S03 Connectors RECEPTACLE JAM NUT SIZE 14 7POS SOCKET

IP Rating: IP67, IP69k

Shell Size: 14

Wire Gauge: 26 AWG to 14 AWG

Shell Style: Receptacle

Unit Weight: 36.513 g

Mating Style: Threaded

Accessory Type: Jam Nut Receptacle

Contact Gender: Socket (Female)

Current Rating: 13 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Thermoplastic (TP)

Voltage Rating: 500 V

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 14-7

Flammability Rating: UL 94 V-0

Number of Positions: 7 Position
