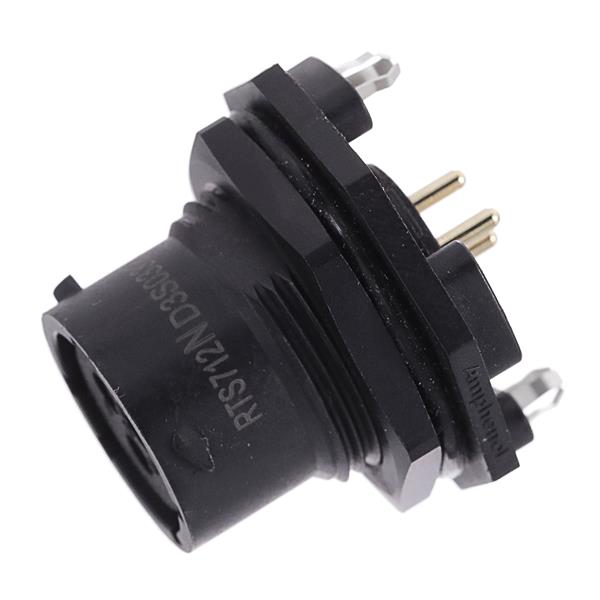

Amphenol SINE Systems RTS712ND3S0332 Connectors Receptacle,Jam Nut SZ12

Height: 24.5 mm

Diameter: 19 mm

IP Rating: IP67, IP69k

Shell Size: 12

Wire Gauge: 26 AWG to 14 AWG

Shell Style: Jam Nut

Mating Style: Bayonet

Accessory Type: Jam Nut, PCB Mounted Receptacles

Contact Gender: Socket (Female)

Current Rating: 13 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: PCB

Shell Material: Thermoplastic (TP)

Voltage Rating: 500 V

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 12-3

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Termination Post Length: 5 mm
