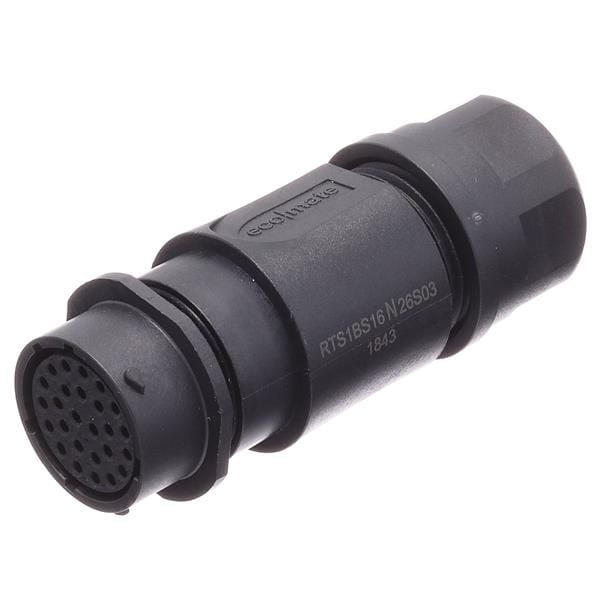

Amphenol SINE Systems RTS1BS16N26S03 Connectors Inline Receptacle 26 POS SZ 16 Socket

Length: 81.6 mm

Diameter: 32 mm

IP Rating: IP67, IP69k

Shell Size: 16

Wire Gauge: 30 AWG to 20 AWG

Shell Style: Receptacle

Mating Style: Bayonet

Accessory Type: Inline Receptacle w Backshell

Cable Diameter: 10 mm to 14 mm / 13.5 mm to 17 mm

Contact Gender: Socket (Female)

Current Rating: 5 A, 7.5 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 250 V

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 16-26

Flammability Rating: UL 94 V-0

Number of Positions: 26 Position
