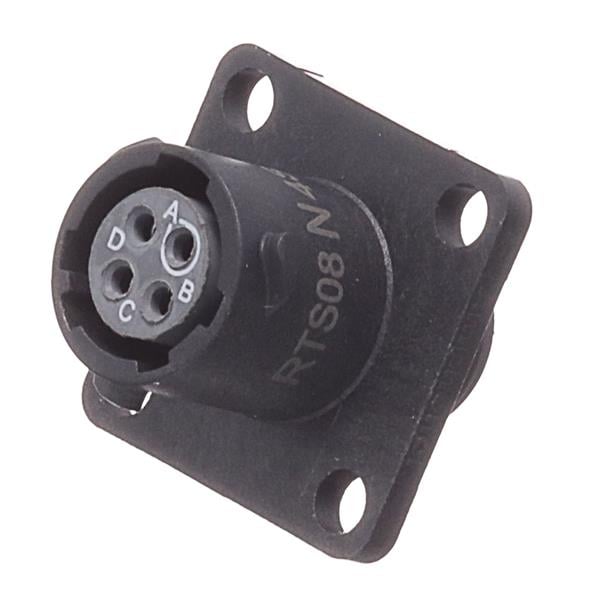

Amphenol SINE Systems RTS08N4S Connectors Square Flange RCPT 4 POS SZ 8 Socket

Width: 20.6 mm

Height: 21.4 mm

Length: 20.6 mm

Diameter: 11.9 mm

IP Rating: IP67, IP69k

Shell Size: 8

Wire Gauge: 30 AWG to 20 AWG

Shell Style: Receptacle

Unit Weight: 46.050 g

Mating Style: Bayonet

Accessory Type: Square Flange Receptacle

Contact Gender: Socket (Female)

Current Rating: 5 A, 7.5 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Voltage Rating: 250 V

Contact Material: Copper Alloy

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 8-4

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position
