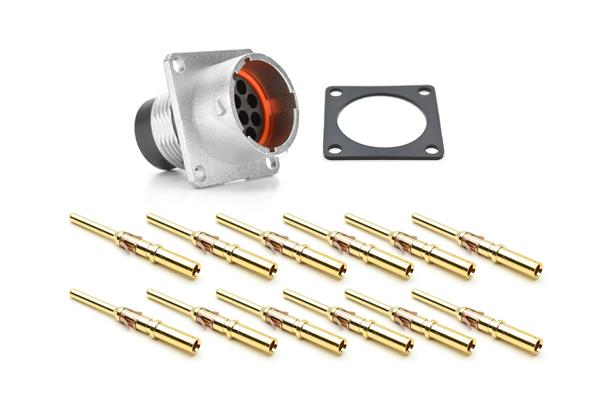

Amphenol SINE Systems RT001412PKNH03-K Connector Kits Receptacle Kit, Square Flange, 12 Position, Male, Shell Size 14, Silicone Seal, with Machined Gold Contacts, Size 16 (18-16AWG), Gasket, IP69K

Width: 28.6 mm

Height: 28.6 mm

Length: 32 mm

IP Rating: IP67, IP69k

Shell Size: 14

Wire Gauge: 26 AWG to 14 AWG

Shell Style: Receptacle

Mating Style: Threaded

Mounting Type: Flange

Shell Plating: Nickel

Accessory Type: Square Flange Receptacle Kit

Contact Gender: Pin (Male)

Current Rating: 13 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Zinc Alloy

Voltage Rating: 500 V

Contact Material: Brass

Housing Material: Zinc Alloy

Insert Arrangement: 14-12

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position
