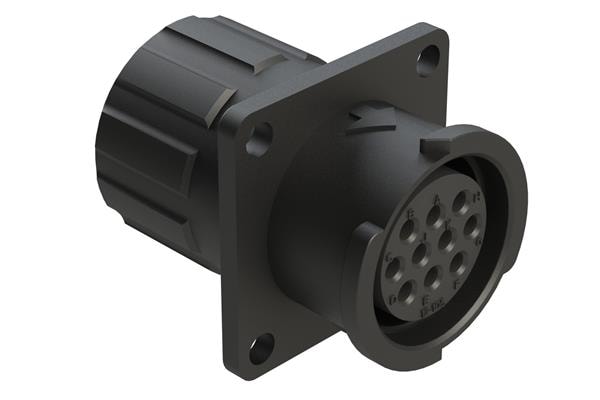

Amphenol SINE Systems FLS012N10SHEC03 Connectors 10 POS SQUARE FLANGE RECEPT

Color: Black

IP Rating: IP67, IP68, IP69K

Shell Size: 12

Wire Gauge: 30 AWG to 20 AWG

Shell Style: Square Flange

Mating Style: Quick Lock

Mating Cycles: 500 Cycle

Accessory Type: Square Flange Receptacle

Contact Gender: Socket (Female)

Current Rating: 5 A, 7.5 A

Housing Gender: Female

Mounting Angle: Vertical

Mounting Style: Cable

Voltage Rating: 250 V

Housing Material: Thermoplastic

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position
