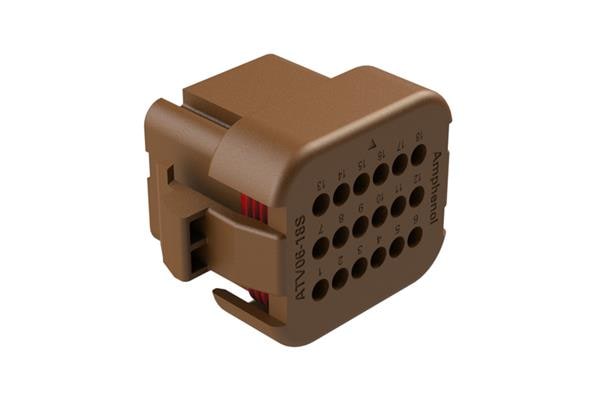

Amphenol SINE Systems ATV06-18SD 18-Way 18 POS PLUG SZ 16 Key D

Color: Brown

Gender: Plug (RP - Female)

Insulation: Insulated

Contact Type: Pin

Mating Gender: Receptacle

Contact Gender: Without Socket Contacts

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 3 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Ingress Protection: IP67, IP69K

Mating Part Number: ATV02-18PD, ATV04-18PD

Flammability Rating: UL 94 V-0

Number of Positions: 18 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
