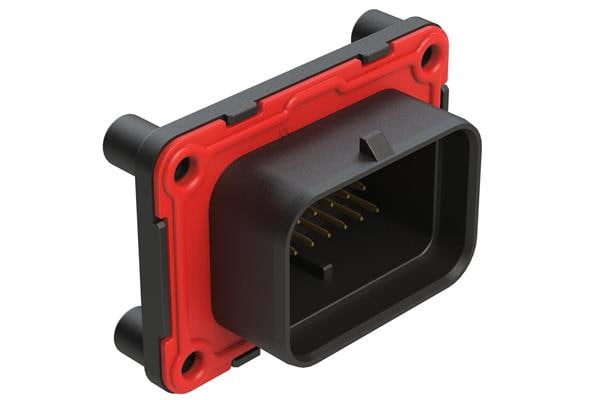

Amphenol SINE Systems ATS15-34PA1-BM01 Receptacles 34 Position PCB Receptacle with Sealed Flange, Pin, Straight, Single Latch, Contact Size 20, Self-Threading, Keyed A, Black

Color: Black

Insulation: Insulated

Contact Gender: Male

Current Rating: 7.5 A

Housing Gender: Female

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Number of Rows: 4 Row

Wire Gauge Max: 18 AWG

Wire Gauge Min: 28 AWG

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 28 AWG to 18 AWG

Termination Style: Solder Pin

Number of Positions: 34 Position

Insulation Resistance: 1 GOhms

Operating Temperature Range: - 55 C to + 125 C

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
