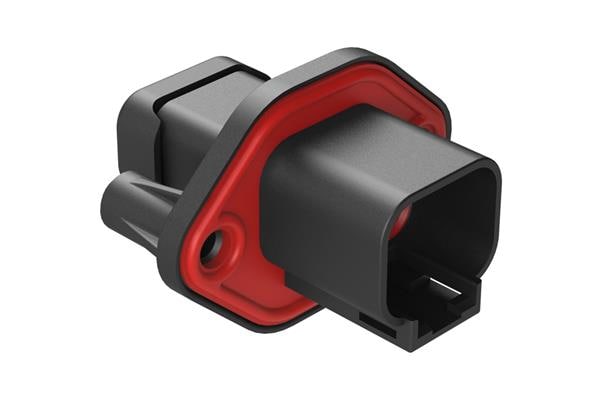

Amphenol SINE Systems ATP04-2P-PM07GEC 2-Way 2 Pin Rcpt Screw Pnl Mnt W/Gasket Cap Blk

Color: Black

Gender: Receptacle (RP - Male)

Insulation: Insulated

Unit Weight: 21 g

Mating Gender: Plug

Contact Gender: Without Pin Contacts

Current Rating: 25 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Number of Rows: 1 Row

Wire Gauge Max: 10 AWG

Wire Gauge Min: 14 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 10 AWG to 14 AWG

Mating Part Number: ATP06-2S

Number of Positions: 2 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
