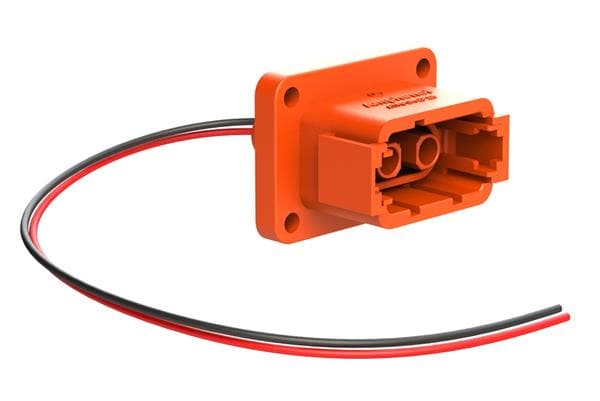

Amphenol SINE Systems ATHP042P25EL Receptacles 2 POSITION PLUG HV LOOP EMC SHIELD

IP Rating: IP67

Unit Weight: 33.007 g

For Use With: A Keyed Plug

Housing Color: Orange

Contact Gender: Pin (Male)

Current Rating: 25 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Panel

Number of Rows: 1 Row

Voltage Rating: 1 kV

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Insert / Contact Gender: Pin (Male)

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C
