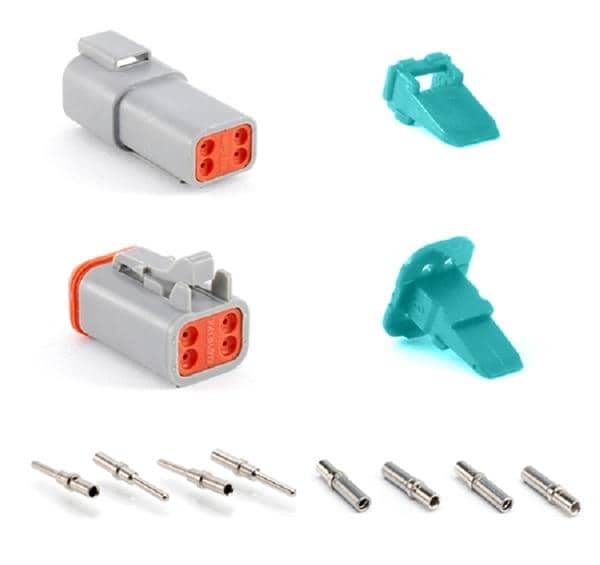

Amphenol SINE Systems AT4PS-CKIT Kits AT PIN & SOCKET WEDGE KIT

Color: Gray

Gender: Male / Female

Insulation: Insulated

Unit Weight: 28.640 g

Contact Type: Pin, Socket

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 16 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Nickel

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 16 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Number of Positions: 4 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
