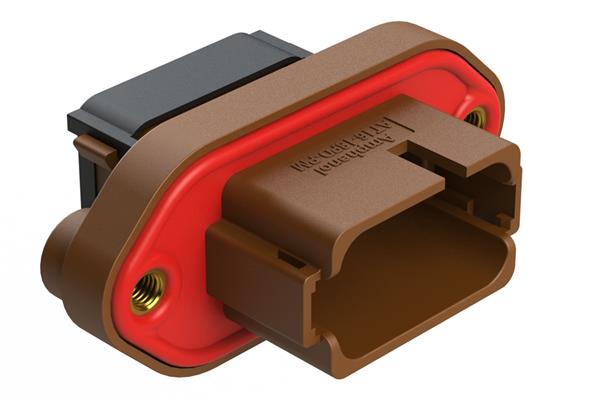

Amphenol SINE Systems AT16-18PD-PM11 18-Way 18 Position Panel Mo acle, Keyed D, Brown
Color: Brown
Gender: Receptacle (RP - Male)
Insulation: Insulated
Contact Type: Pin
Mating Gender: Receptacle
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Panel Mount
Number of Rows: 3 Row
Voltage Rating: 250 V
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Mating Part Number: AT16-18SD
Number of Positions: 18 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
