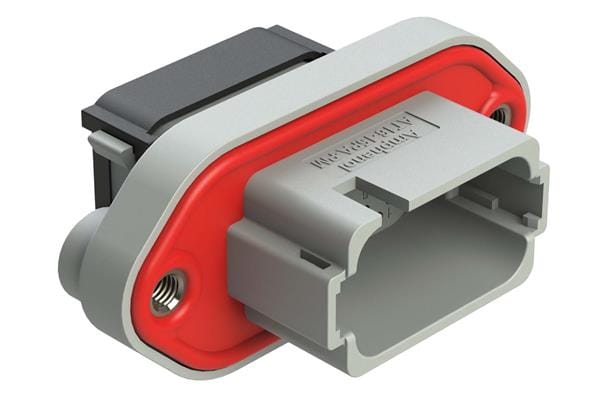

Amphenol SINE Systems AT16-15PA-PM11 Receptacles PANEL MOUNT RECEPT. FLANGE, GR

Color: Gray

Gender: Receptacle (Female)

Insulation: Insulated

Contact Type: Pin

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Style: Panel Mount

Voltage Rating: 250 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 22 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 12 AWG, 22 AWG to 14 AWG

Termination Style: Crimp

Ingress Protection: IP68, IP69K

Number of Positions: 15 Position

Insulation Resistance: 1 GOhms

Operating Temperature Range: - 55 C to + 125 C

Maximum Operating Temperature: - 55 C

Minimum Operating Temperature: + 125 C

Cable Diameter / Insulation Range: 3.05 mm to 4.01 mm
