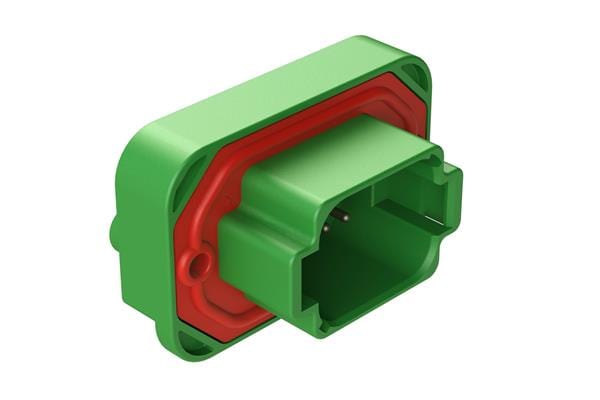

Amphenol SINE Systems AT15-08PC-BM04 Connectors Str Flng Mnt PCB Rcp 8POS Grn Tin Cont C

Color: Green

Pitch: 9.1 mm (0.358 in)

Width: 35.3 mm

Gender: Receptacle (Female)

Height: 30 mm

Length: 55.1 mm

Row Spacing: 5.5 mm

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Number of Rows: 2 Row

Voltage Rating: 250 V

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: Solder

Ingress Protection: IP67

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
