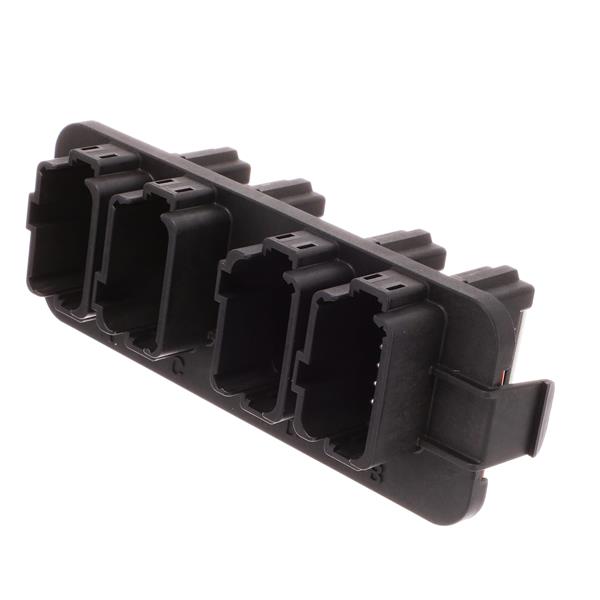

Amphenol SINE Systems AT13-48PABCD-BM03 Headers AIPX AT Header Therm SIZE 16 ABCD KEY TIN

Color: Black

Gender: Receptacle (Female)

Insulation: Insulated

Contact Type: Pin

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 8 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Solder Pin

Mating Part Number: AT06-12SX

Flammability Rating: UL 94 V-0

Number of Positions: 48 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
