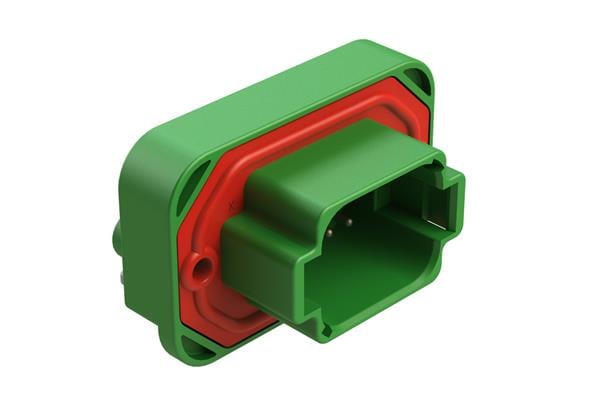

Amphenol SINE Systems AT13-08PC-BM03 Connectors RA Flng Mnt PCB Rcpt 8POS Grn Tin Cont C

Color: Green

Pitch: 5.5 mm (0.217 in)

Width: 35.3 mm

Gender: Receptacle (RP - Male)

Height: 39.4 mm

Length: 55.1 mm

Insulation: Insulated

Row Spacing: 6.4 mm

Contact Type: Pin

Mating Gender: Plug

Current Rating: 13 A

Mounting Angle: Right Angle

Mounting Style: Mounting Flange

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Solder Pin

Ingress Protection: IP67

Mating Part Number: AT06-08S

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
