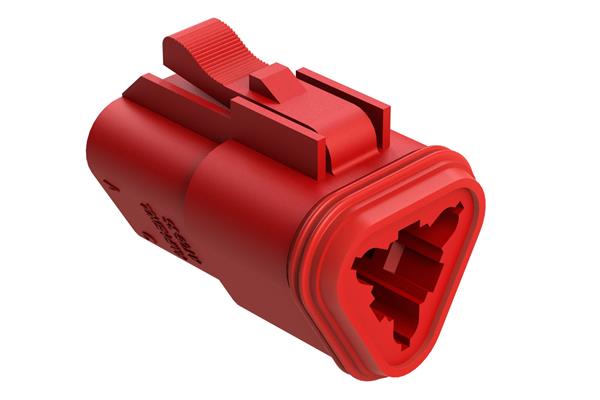

Amphenol SINE Systems AT06-3S-RED 3-Way 3 Pin Plug
ModelAT06-3S-RED
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Red
Gender: Plug (RP - Female)
Insulation: Insulated
Contact Type: Socket
Mating Gender: Receptacle
Contact Gender: Without Socket Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Mating Part Number: AT04-3P
Number of Positions: 3 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
