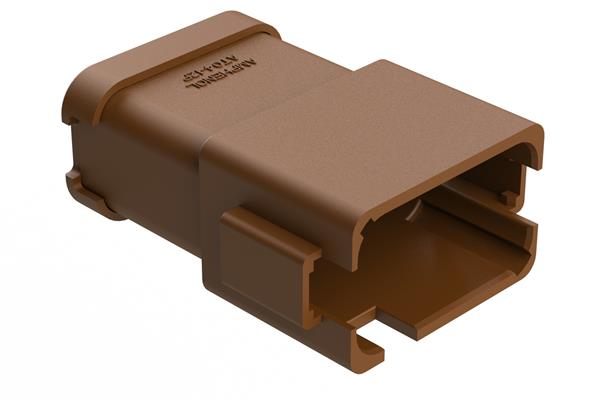

Amphenol SINE Systems AT04-12PD-EC01 Connectors 12P RECEP W/ END CAP KEY POSITION D
Gender: Receptacle (RP - Male)
Insulation: Insulated
Contact Type: Pin
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Wire Gauge Max: 14 AWG
Wire Gauge Min: 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 14 AWG to 20 AWG
Termination Style: Crimp
Ingress Protection: IP67
Mating Part Number: AT06-12SXx
Number of Positions: 12 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
