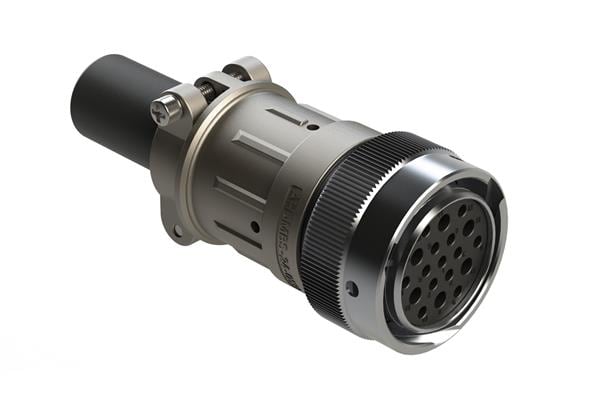

Amphenol SINE Systems AHDM06-24-19SR-059 Connectors Plug Kit, shell size 24, 19 positions socket, reduced diameter seal, wide thread, cable clamp backshell

IP Rating: IP67, IP69K

Shell Size: 24

Wire Gauge: 14 AWG - 10 AWG, 20 AWG - 14 AWG

Shell Style: Plug

Mating Style: Bayonet

Mating Cycles: 100 Cycle

Shell Plating: Nickel

Contact Gender: Socket (Female)

Current Rating: 25 A, 13 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Zinc Alloy

Voltage Rating: 250 V

Housing Material: Zinc

Termination Style: Crimp

Insert Arrangement: 24-19

Number of Positions: 19 Position
