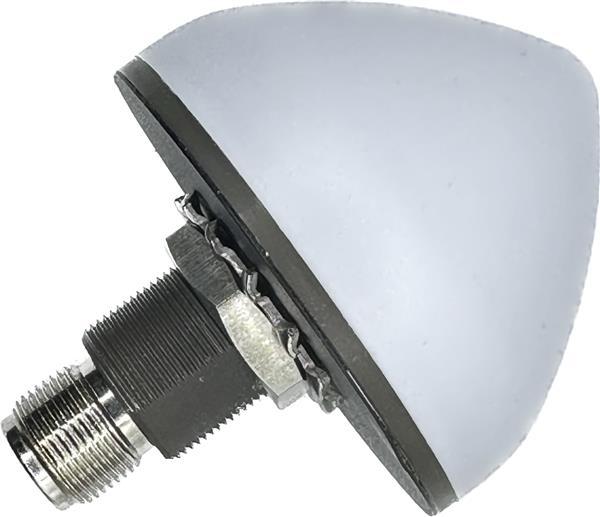

Amphenol RF ST0504-22-201-B GNSS Antenna IP67 Multi Band External RF Antenna ANT 1561 / 1575.42 / 1602 MHz 2 Watts

Gain: 3.5 dBi, 3.8 dBi, 4.8 dBi, 28 dB, 31.5 dBi, 31.8 dBi, 32.8 dBi

Height: 48 mm

IP Rating: IP67

Impedance: 50 Ohms

Application: Asset Tracking, BDS, Fleet Management, Galileo, GPS, GLONASS, Location Based Services, Military and Security, Navigation Devices, Network Synchronization and Timing, QZSS

Mounting Style: Screw Mount

Number of Bands: 3 Band

Center Frequency: 1.561 GHz, 1.57542 GHz, 1.602 GHz

Mechanical Style: Dome

Maximum Frequency: 1.606 GHz

Minimum Frequency: 1.56 GHz

Termination Style: Connector

Antenna Connector Type: N-Type (Jack)

Protocol - GPS, GLONASS: BDS, Galileo, GLONASS, GPS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
