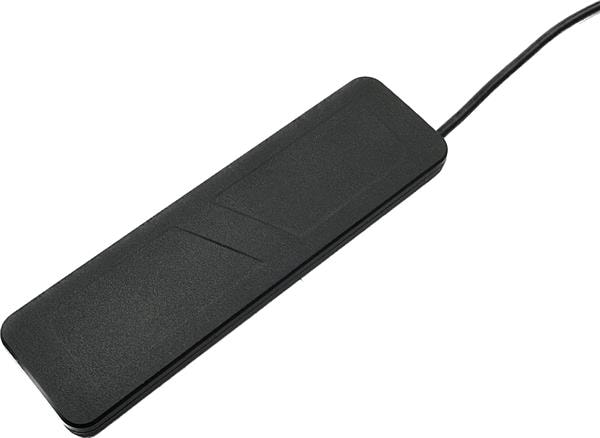

Amphenol RF ST0330-31-001-A Outdoor Antennas External Antenna, 698-960 1710-2170 2300-2690 MHz WWAN, 4G, ISM, IoT, WWAN, IoT, ISM, NB-IoT
ManufacturerAmphenol RF(View more products from this manufacturer)
ModelST0330-31-001-A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 3.2 dBi
Width: 30.1 mm
Height: 7.9 mm
Length: 105.1 mm
IP Rating: IP67
Impedance: 50 Ohms
Cable Type: RG-174
Application: IoT Devices, LoRa, Remote Monitoring
Polarization: Linear
Power Rating: 1 W
Number of Bands: 2 Band
Maximum Frequency: 5.825 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Connector
Antenna Connector Type: RP-SMA Male
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
