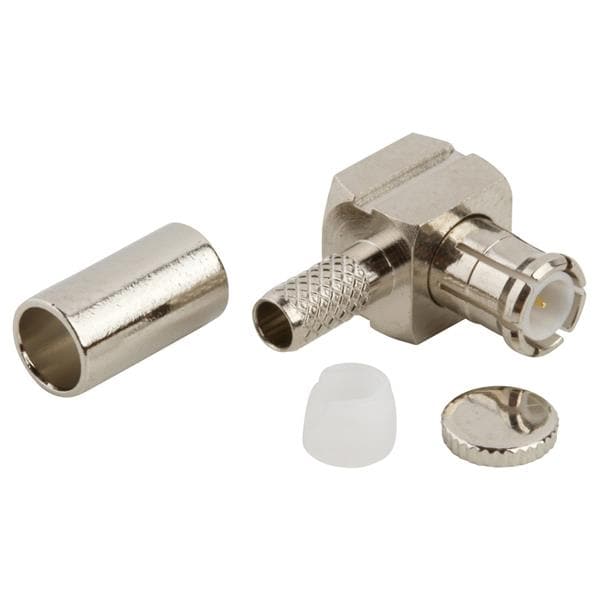

Amphenol RF 919-104P-51A1X Connectors R/A PLG 316/174 Ni
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: MCX
Body Style: Right Angle
Cable Type: RG-174, 188A, 316, Belden 7805A
Body Finish: Nickel
Orientation: Right Angle
Unit Weight: 2.720 g
REACH - SVHC: Details
Body Material: Beryllium Copper
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 6 GHz
Termination Style: Crimp
Coupling Mechanism: Push On
Contact Termination: Solder
Insulation Resistance: 5 kOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
