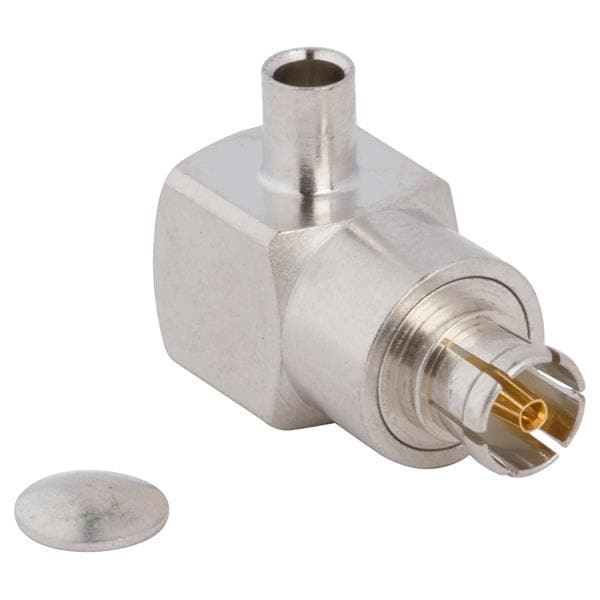

Amphenol RF 915-1006 Connectors PSMP RA Plug 50 Ohm .086" Conform Cbl

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

RF Series: PSMP

Body Style: Right Angle

Cable Type: 0.86 in Semi-Rigid

Body Finish: White Bronze

Orientation: Right Angle

Unit Weight: 4.410 g

Contact Type: Socket (Female)

REACH - SVHC: Details

Body Material: Beryllium Copper

Mating Cycles: 100 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 2.4 GHz

Termination Style: Solder

Coupling Mechanism: Push On

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
