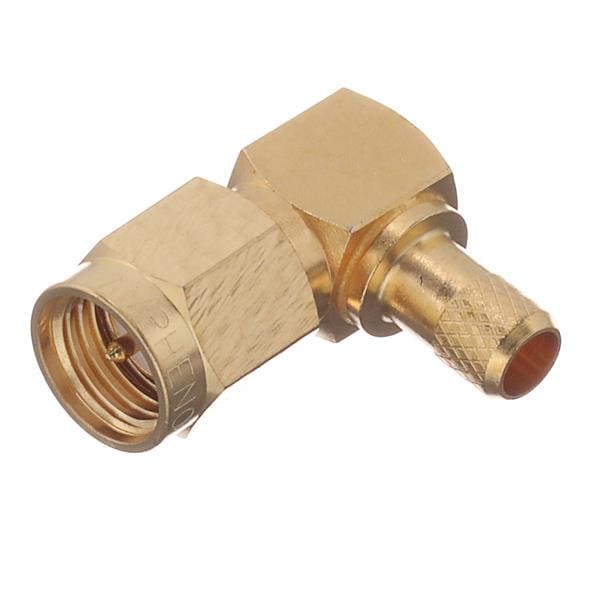

Amphenol RF 901-9531-1 Connectors R/A PLG 142/400 GLD
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Right Angle
Cable Type: RG-55, 142, 223, 400
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 68 g
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 100
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 12.4 GHz
Termination Style: Crimp
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
