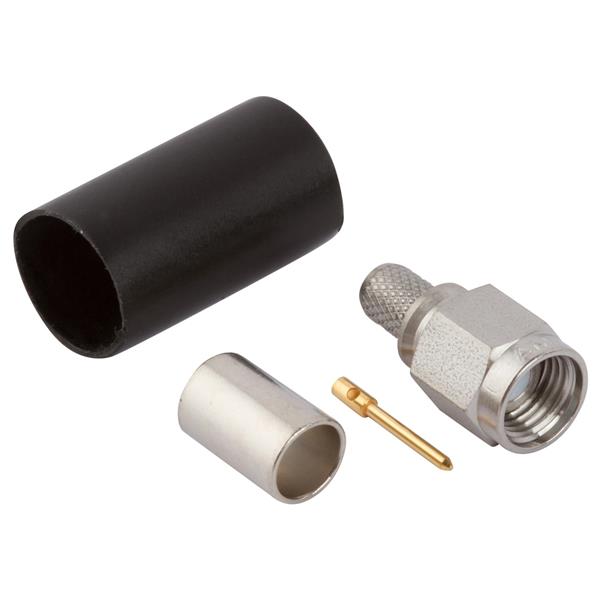

Amphenol RF 901-10012 Connectors SMA STR. PLUG LMR 200 CABLE

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Cable Type: LMR-200, Belden 7807A

Body Finish: Passivated

Orientation: Straight

Unit Weight: 5.468 g

REACH - SVHC: Details

Body Material: Stainless Steel

Mating Cycles: 100

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 12.4 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
