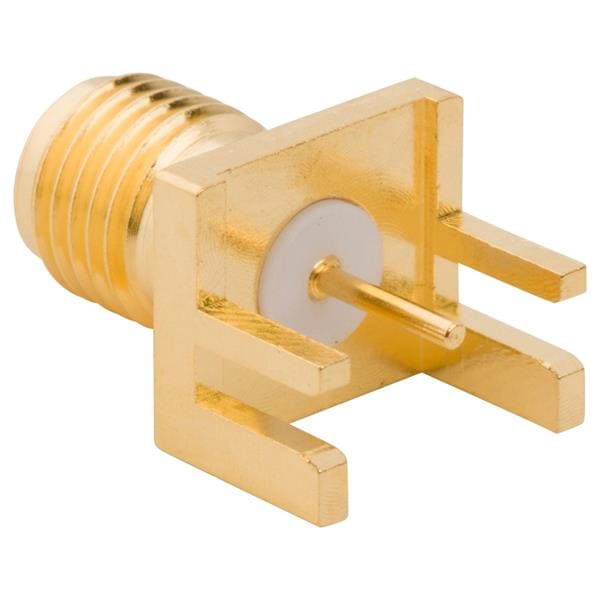

Amphenol RF 901-10003 PCB Connectors SMA PCB EDGE MT JACK
ManufacturerAmphenol RF(View more products from this manufacturer)
Model901-10003
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Straight
Body Finish: Gold
Orientation: Straight
Unit Weight: 1.700 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 100
Mounting Style: Edge Launch
Board Thickness: 0.062 in
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
