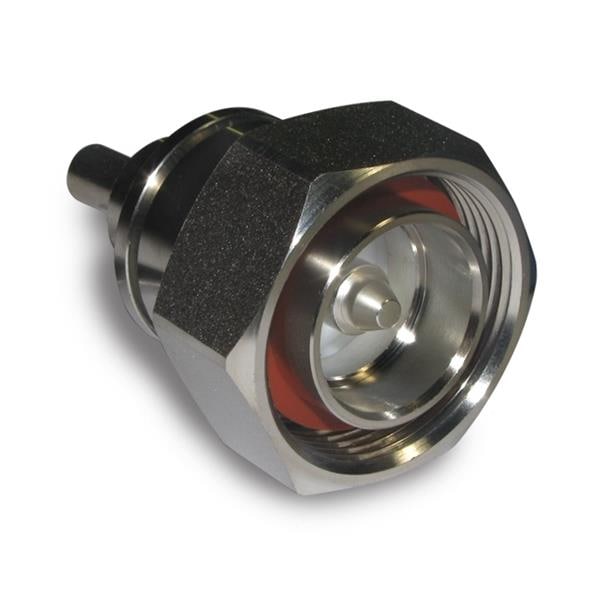

Amphenol RF 272103 Connectors 7/16 CRIMP PLUG 58 141 CABLE
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: 7/16
Cable Type: RG-58, 58A, 58C, 141, 303, LMR195, Belden 7806A
Body Finish: Copper-Tin-Zinc Alloy
Orientation: Straight
Unit Weight: 112.538 g
Body Material: Brass
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Silver
Contact Material: Brass
Maximum Frequency: 7.5 GHz
Termination Style: Crimp
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
