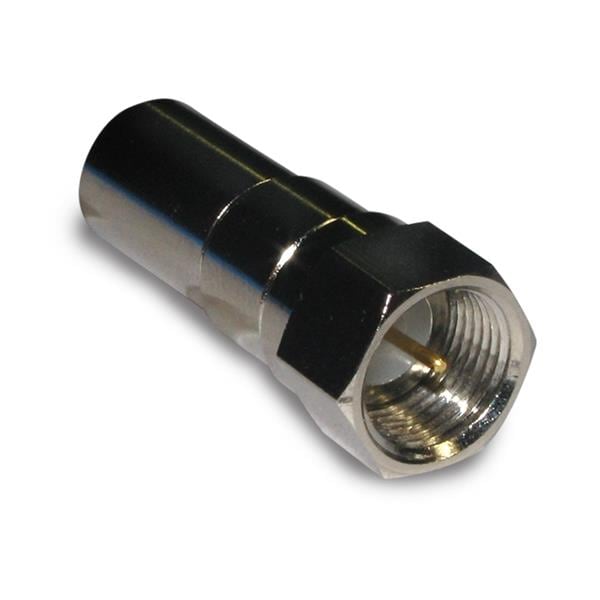

Amphenol RF 222123 Connectors F 3 PC CRIMP PLUG 6/U

Gender: Plug (Pin)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: F Type

Cable Type: RG-6, 143, 212, Belden 3092, 3903

Body Finish: Nickel

Orientation: Straight

Unit Weight: 9.050 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 2 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
