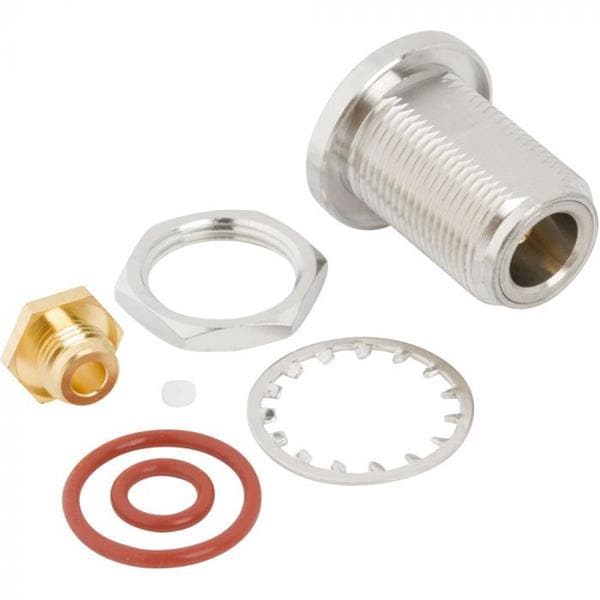

Amphenol RF 172137-10 Connectors RF Connector N-Type Straight Solder Jack RG-142 0.141-inch Conformable Times Tflex 402 Bulkhead 50 Ohm IP67
ManufacturerAmphenol RF(View more products from this manufacturer)
Model172137-10
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
IP Rating: IP67
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: N Type
Body Finish: Copper-Tin-Zinc Alloy
Orientation: Straight
Body Material: Brass
Mating Cycles: 500
Mounting Style: Bulkhead - Rear Mount
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 11 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
