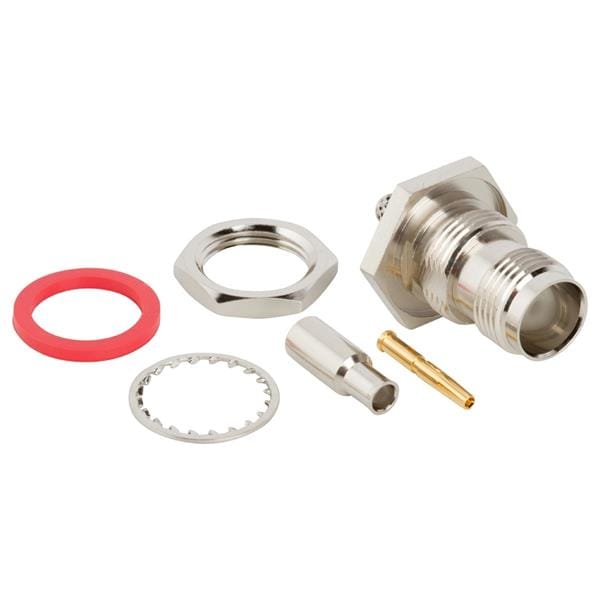

Amphenol RF 122193 Connectors TNC BULKHEAD CRIMP JACK RG179 75 OHM

Gender: Jack (Socket)

Polarity: Standard

Impedance: 75 Ohms

Isolation: Non-Isolated

RF Series: TNC

Cable Type: RG-179, 187, Belden 9221

Body Finish: Nickel

Orientation: Straight

Unit Weight: 16.200 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 1 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
