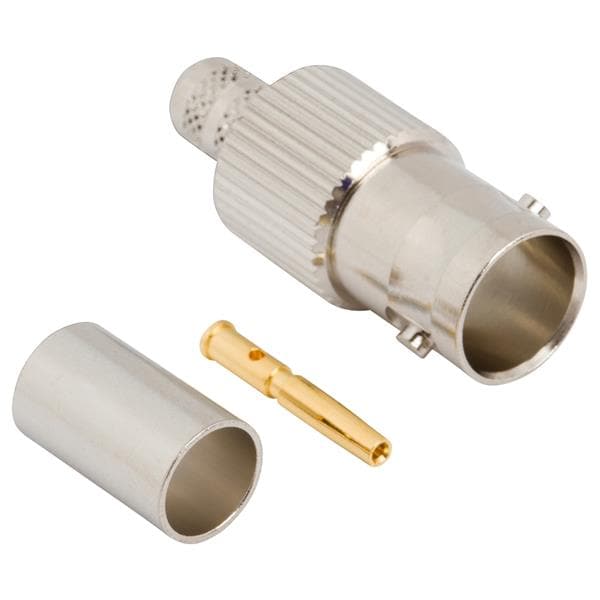

Amphenol RF 112649 Connectors BNC ST JACK 59 20 AWG 75 OHM TF
Gender: Jack (Socket)
Polarity: Standard
Impedance: 75 Ohms
Isolation: Non-Isolated
RF Series: BNC
Cable Type: RG-59/U, Belden 1515, 9104, 9108
Body Finish: Nickel
Orientation: Straight
Unit Weight: 10.300 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 500 V
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 4 GHz
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Crimp
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
