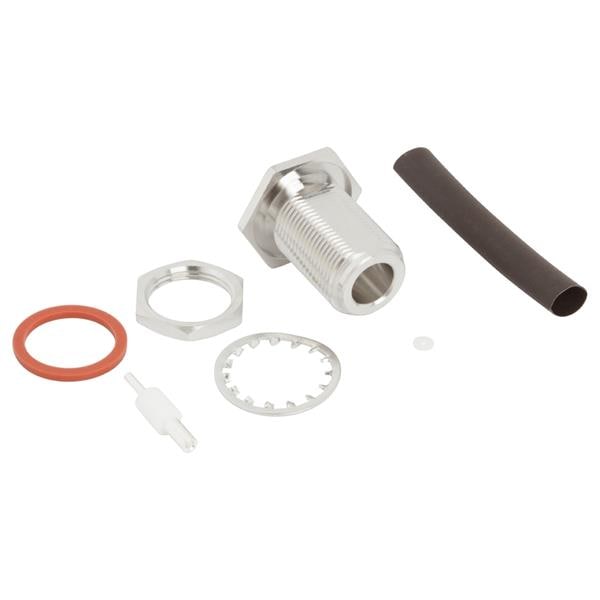

Amphenol RF 082-6671 Connectors BKHD JACK .141 18 GHz SEMI RIGID
ManufacturerAmphenol RF(View more products from this manufacturer)
Model082-6671
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: N Type
Cable Type: RG-402, 0.141 Semi-Rigid
Body Finish: White Bronze
Orientation: Straight
Unit Weight: 41.688 g
Body Material: Brass
Mating Cycles: 500 Cycle
Mounting Style: Bulkhead - Rear Mount
Contact Plating: Silver
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
