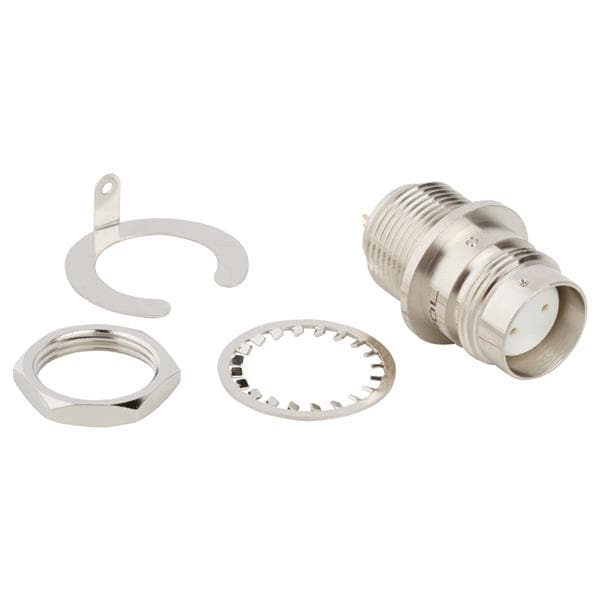

Amphenol RF 082-5590-RFX Connectors BULKHEAD JACK S/CUP FRONT MOUNT

Gender: Jack (Socket)

Polarity: Standard

Impedance: Non-Constant

Isolation: Non-Isolated

RF Series: Twinax

Body Style: Bulkhead

Body Finish: Nickel

Orientation: Straight

Unit Weight: 41.700 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 500 MHz

Termination Style: Solder Cup

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
