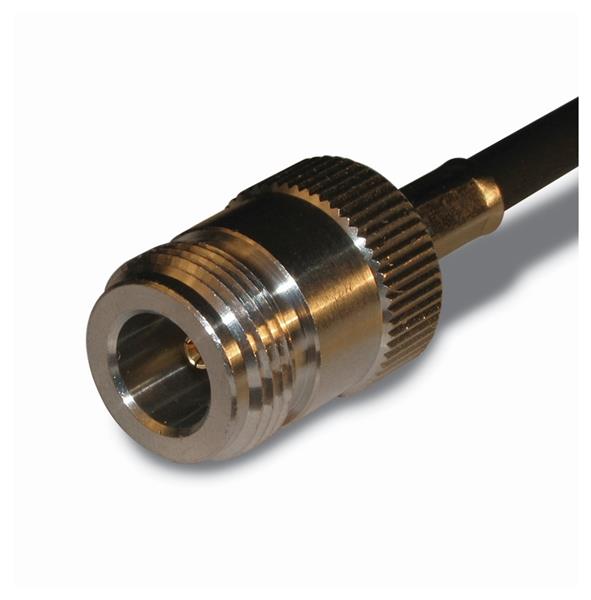

Amphenol RF 082-4429-RFX Connectors Type N Strt Jack Blkhd Crimp

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: N Type

Body Style: Straight

Cable Type: RG-8, 213, 225

Body Finish: Nickel

Orientation: Straight

Body Material: Brass

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 1.5 kV

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
