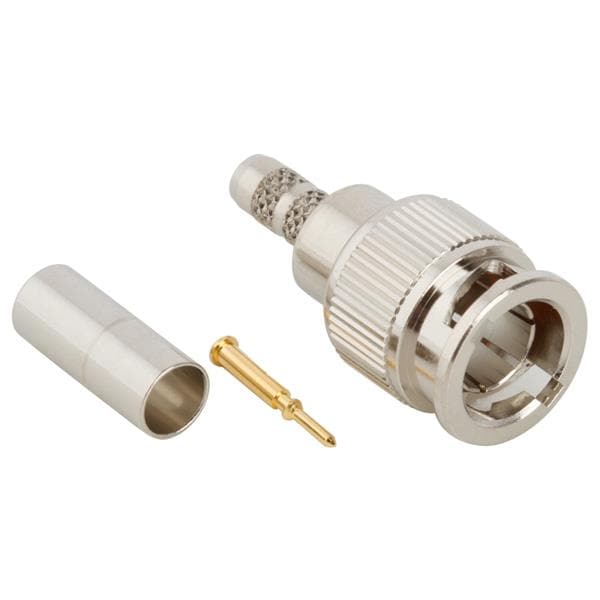

Amphenol RF 031-70260 Connectors MINI BNC CRIMP PLUG 75ohm 8218 88281
Gender: Plug (Pin)
Polarity: Standard
Impedance: 75 Ohms
Isolation: Non-Isolated
RF Series: Mini-BNC
Body Style: Straight
Cable Type: Belden 8218
Body Finish: Nickel
Orientation: Straight
Unit Weight: 6.700 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 400 V
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 4 GHz
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Crimp
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
