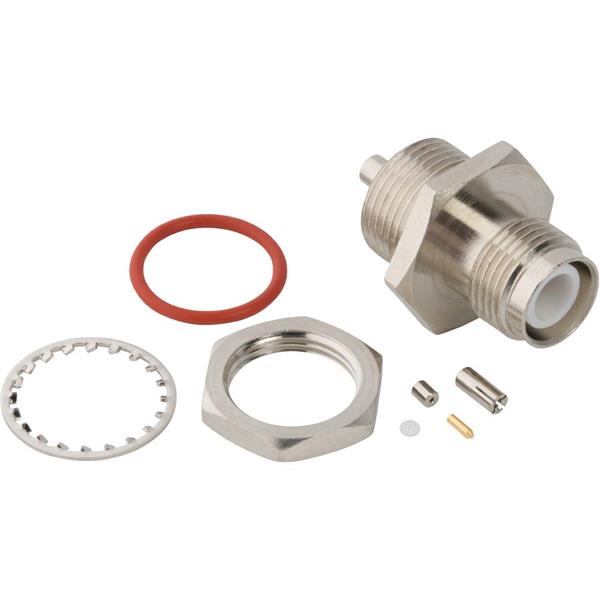

Amphenol RF 031-7010 RF Connectors RP-TNC Straight Crimp Jack 1.37 mm Micro-Cable Front Bulkhead 50 Ohm IP67
ManufacturerAmphenol RF(View more products from this manufacturer)
Model031-7010
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Pin)
Polarity: Reverse
IP Rating: IP67
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: RP-TNC
Body Style: Bulkhead
Cable Type: 1.37 mm Coax
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Type: Front Mount
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 9 GHz
Minimum Frequency: DC
Termination Style: Crimp
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
