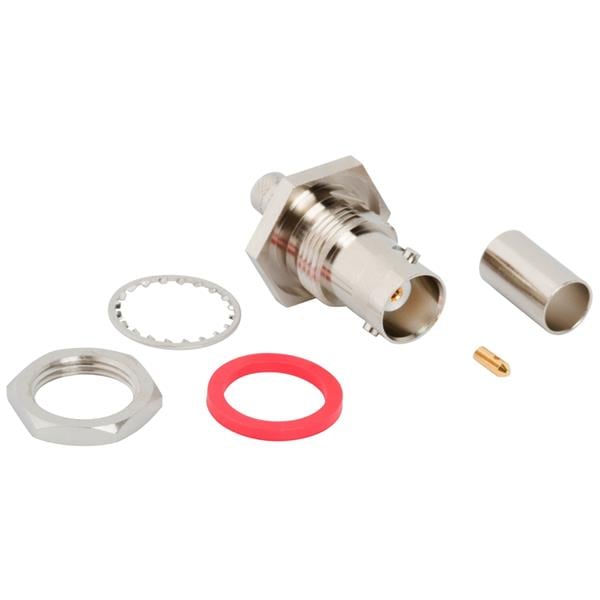

Amphenol RF 031-6928 Connectors RF Connector BNC StrCrmp RG-8X
Gender: Jack (Socket)
Polarity: Standard
IP Rating: IP67
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: BNC
Cable Type: RG-8X, Times LMR-240, Times LMR-240 UltraFlex, Belden 9258
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycle
Insertion Loss: 1.3
Mounting Style: Bulkhead - Rear Mount
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
