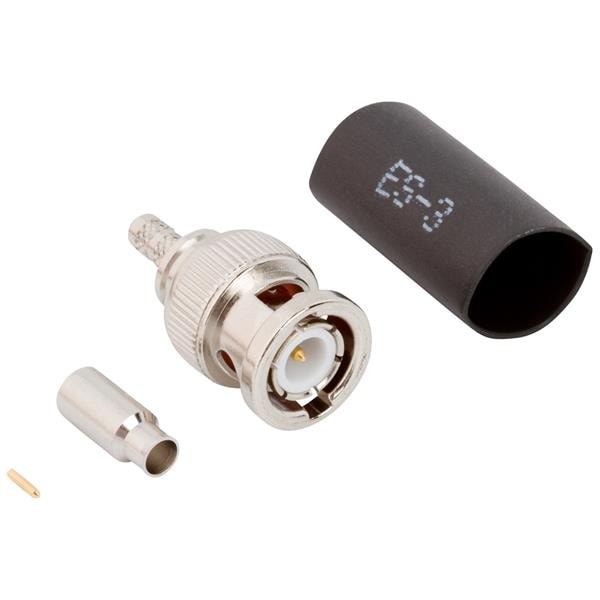

Amphenol RF 031-6925 Cable Connectors BNC Str Cr Pl RG-316 50 Ohm IP67
Gender: Plug (Pin)
Polarity: Standard
Frequency: DC to 6 GHz
IP Rating: IP67
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: BNC
Body Style: Straight
Cable Type: RG-174, 188, 316, LMR-100A
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Minimum Frequency: DC
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Solder
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
