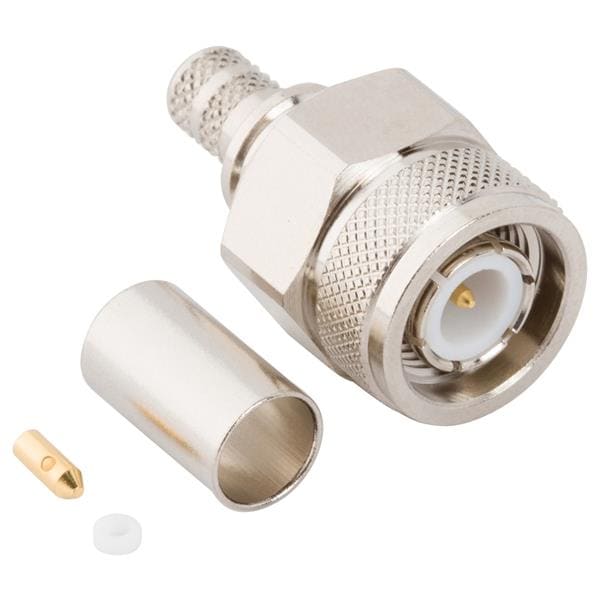

Amphenol RF 031-6683 Connectors TNC Straight Crimp LMR-240 IP67 50 Ohm
ManufacturerAmphenol RF(View more products from this manufacturer)
Model031-6683
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Frequency: 6 GHz
Impedance: 50 Ohms
RF Series: TNC
Body Style: Straight
Cable Type: LMR-240
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycle
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 6 GHz
Termination Style: Solder
Insulation Resistance: 1 kV
Maximum Operating Temperature: + 130 C
Minimum Operating Temperature: - 40 C
