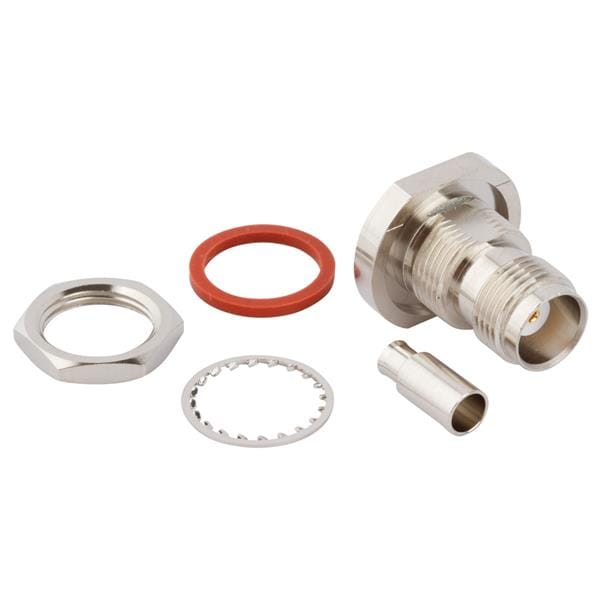

Amphenol RF 031-6111 Connectors TNC(F) SEALED BLKHD RG-174

Gender: Jack (Socket)

Polarity: Standard

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Body Style: Bulkhead

Cable Type: RG-174, 316

Body Finish: Nickel

Orientation: Straight

Unit Weight: 19.700 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 3 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Crimp

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
