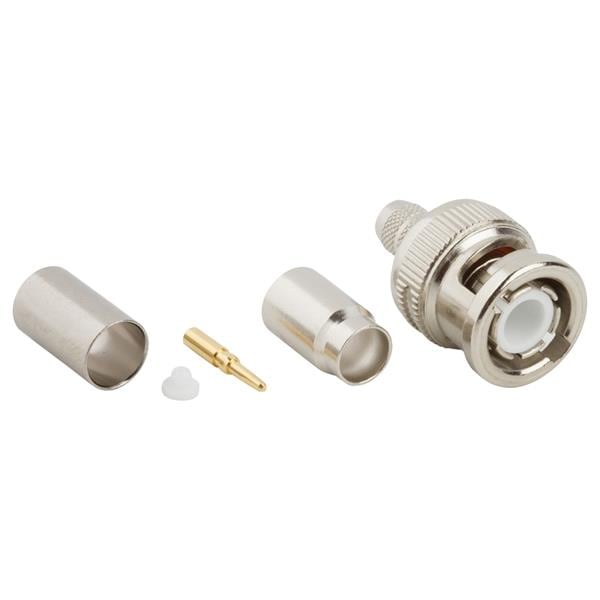

Amphenol RF 031-5900 Connectors SRT PLUG RG59

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Straight

Cable Type: RG-59, Belden 82108

Body Finish: Nickel

Orientation: Straight

Unit Weight: 8.800 g

REACH - SVHC: Details

Body Material: Zinc Die Cast

Mating Cycles: 500

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 4 GHz

Termination Style: Crimp

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 40 C
