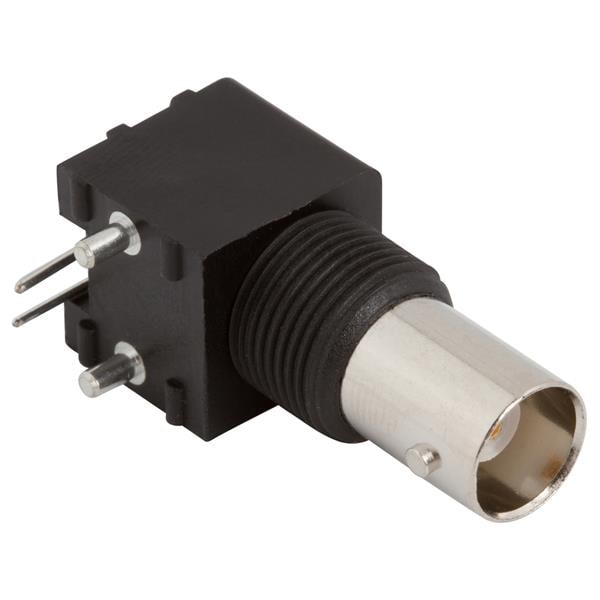

Amphenol RF 031-5538 PCB Connectors R/A PC BLHD JCK BLK

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: BNC

Body Style: Right Angle

Body Finish: Nickel

Orientation: Right Angle

Unit Weight: 113.400 g

REACH - SVHC: Details

Body Material: Zinc Die Cast

Mating Cycles: 500

Mounting Style: Bulkhead - Rear Mount

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 1 GHz

Termination Style: Solder Pin

Coupling Mechanism: Bayonet

Contact Termination: Solder

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
