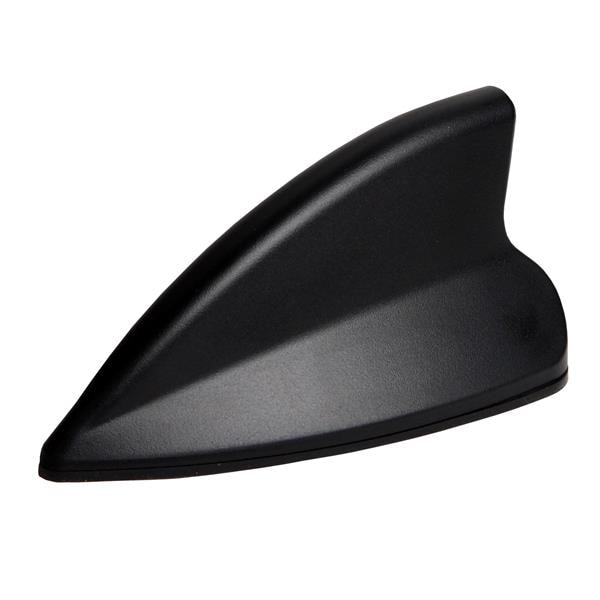

Amphenol Procom PROFIN G2-430 Vehicle Antennas ProFin G2-430

Gain: 26 dB

VSWR: 2 : 1

Style: Sharkfin

Width: 76 mm

Height: 66 mm

Length: 142.5 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: R58

Unit Weight: 258.547 g

Cable Length: 140 mm to 250 mm

Polarization: Vertical

Power Rating: 25 W

Mounting Style: Panel Mount

Number of Bands: 5 Band

Maximum Frequency: 6 GHz

Minimum Frequency: 380 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: GNSS, GPS

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 50 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G
