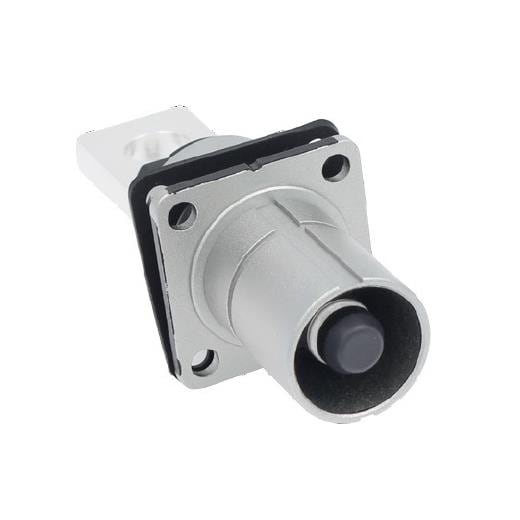

Amphenol PCD Shenzhen HVBI005R10AMHARD Connectors R10 Rec A code Rd w/Interlock
ModelHVBI005R10AMHARD
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Receptacle (RP - Male)
Insulation: Insulated
Unit Weight: 164.438 g
Contact Type: PIn
Contact Gender: Pin (Male)
Current Rating: 250 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Voltage Rating: 1 kV
Contact Plating: Silver
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Ingress Protection: IP67, IP69K
Flammability Rating: UL 94 V-0
Number of Positions: 1 Position
Insulation Resistance: 2 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
