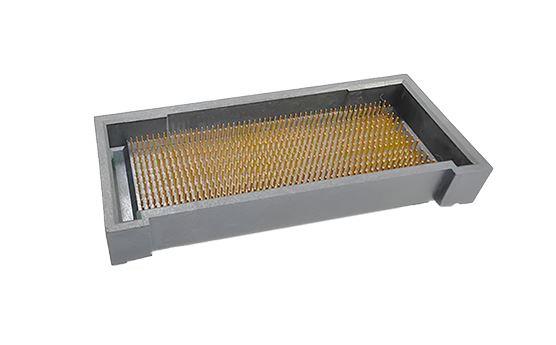

Amphenol FCI 10169063-5602100LF Headers DensiStak Header H2 .8mm x 1.25mm 616Pos 11 x 56 3u 8mm STK HT
ManufacturerAmphenol FCI(View more products from this manufacturer)
Model10169063-5602100LF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Data Rate: 16 Gb/s
Stack Height: 8 mm
Current Rating: 800 mA, 4 A
Mounting Style: PCB Mount
Number of Rows: 11 Row
Voltage Rating: 100 VAC, 100 VDC
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 616 Position
Insulation Resistance: 100 mOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
