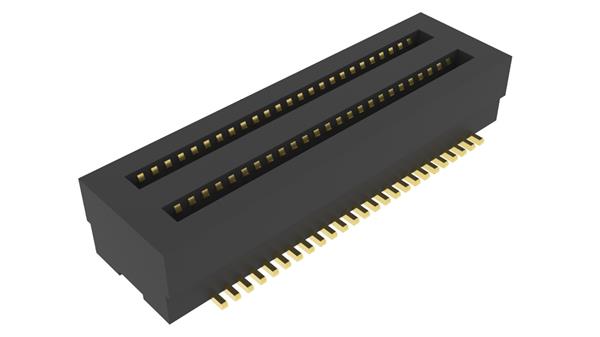

Amphenol FCI 10165431-105000LF Receptacles BergStak0.50mm REC 50pos, 7mm mating height
ManufacturerAmphenol FCI(View more products from this manufacturer)
Model10165431-105000LF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.5 mm (0.02 in)
Data Rate: 2 Gb/s
Application: Automotive
Stack Height: 3 mm
Current Rating: 500 mA
Mounting Angle: Vertical
Mounting Style: PCB Mount
Number of Rows: 2 Row
Voltage Rating: 50 VAC
Contact Plating: Gold
Contact Material: Copper
Housing Material: Thermoplastic (TP)
Maximum Data Rate: 2 Gbps
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 50 Position
Insulation Resistance: 500 MOhms
Termination Post Length: 7 mm
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
