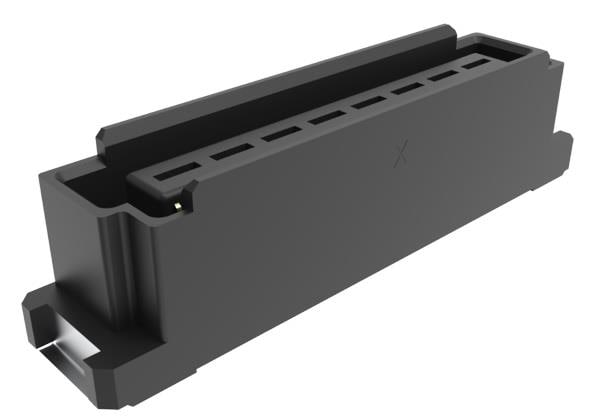

Amphenol FCI 10163419-0843002LF Receptacles BERGSTAK .4MM 80P REC

Pitch: 0.5 mm (0.02 in)

Data Rate: 32 Gb/s

Application: Advanced Driver Assistance Systems, Artificial Intelligence, Embedded Computer, Server Storage

Stack Height: 12 mm

Current Rating: 500 mA

Mounting Angle: Straight

Mounting Style: SMD/SMT

Number of Rows: 2 Row

Voltage Rating: 100 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder

Flammability Rating: UL 94 V-0

Number of Positions: 80 Position

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
