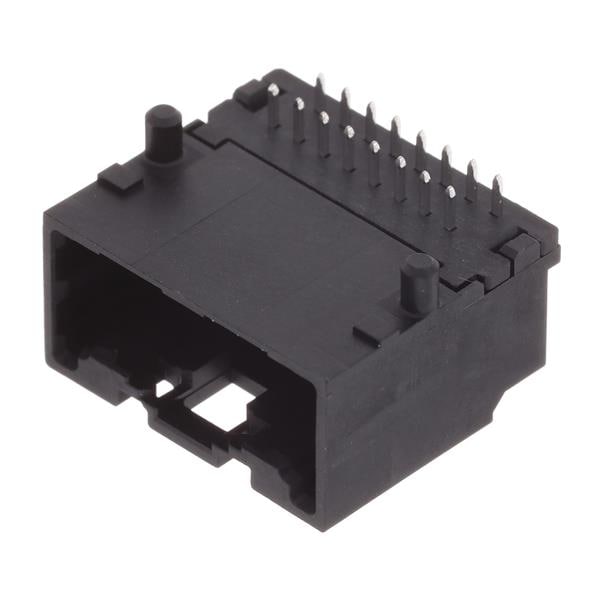

Amphenol FCI 10153118-116KALF Wire to Board WireLock 1.80mm WTB Conn ThroughHole16pn
ManufacturerAmphenol FCI(View more products from this manufacturer)
Model10153118-116KALF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 1.8 mm (0.071 in)
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 48 VAC/DC
Wire Gauge Max: 22 AWG
Wire Gauge Min: 26 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Polyamide (PA)
Termination Style: Solder Pin
Flammability Rating: UL 94 V-0
Number of Positions: 16 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
